Upgrade your home comfort with the cutting-edge 4th Generation MrCool 48K BTU 21 SEER DIY 4 Zone Ductless Mini-Split System. This high-efficiency heat pump delivers superior performance and significant energy savings. Also, benefit from a 7-year compressor warranty and 5-year parts warranty, with an option for a lifetime compressor warranty.
- 9K BTU air handler sqft coverage: 375 sqft
- 12K BTU air handler sqft coverage: 500 sqft

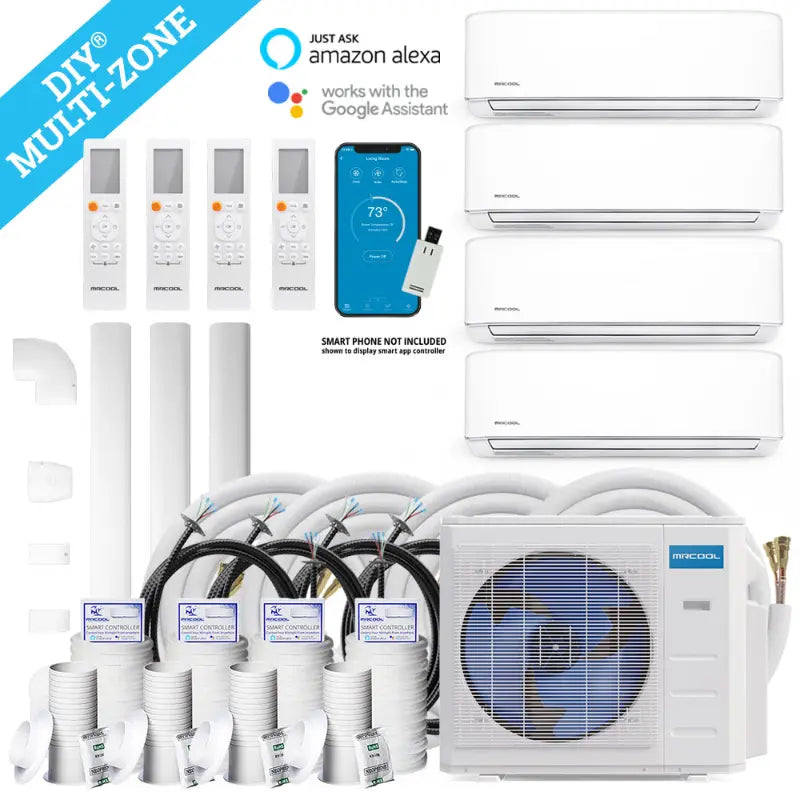

This Multi-zone Mini Split AC and Heat Pump combines:

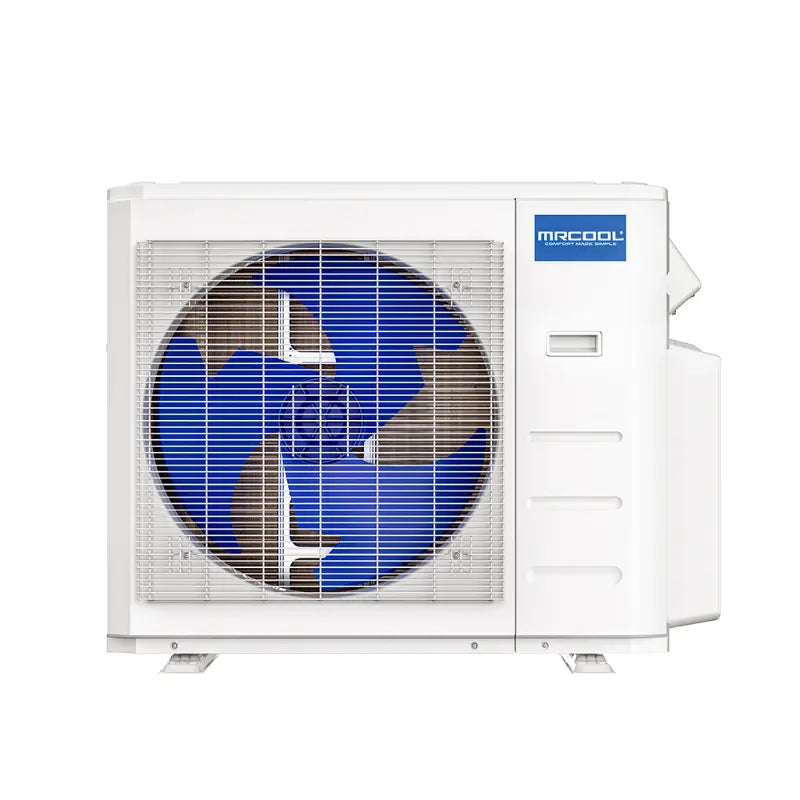

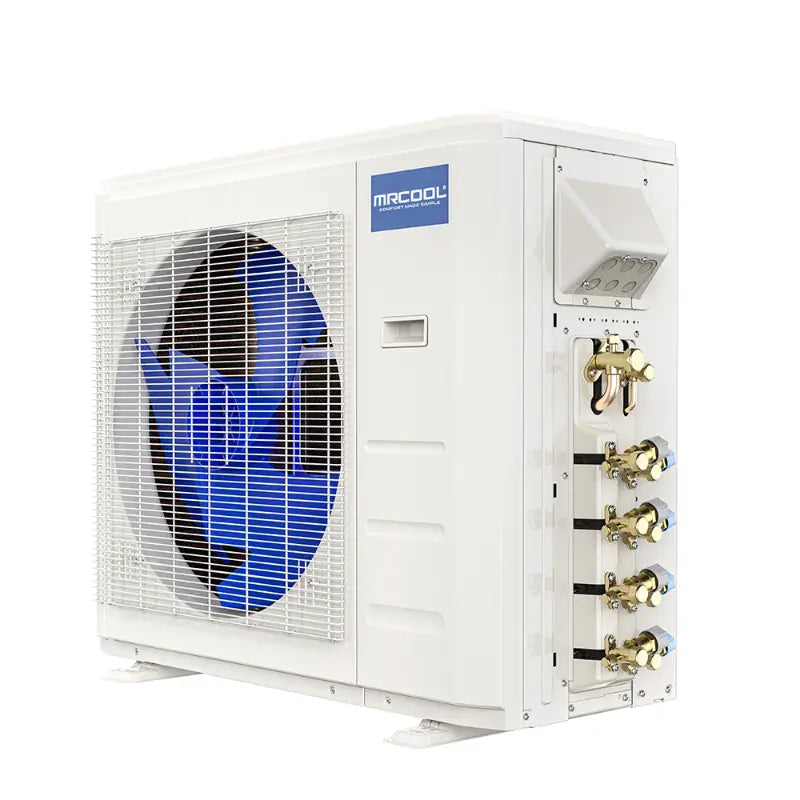

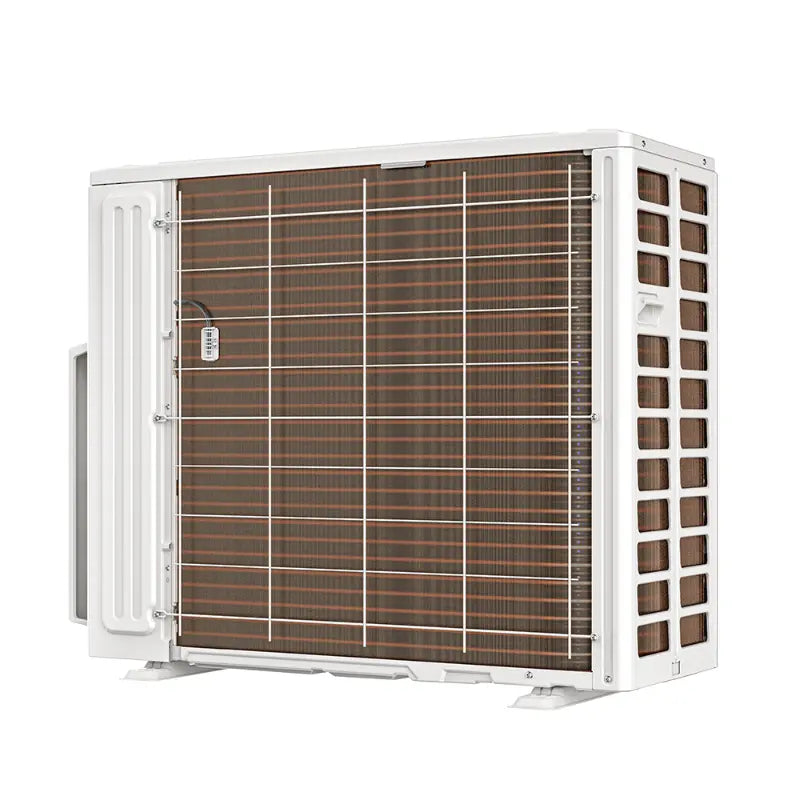

Powerful 48K BTU 4-Zone Condenser
- Unmatched Efficiency: Up to 21.5 SEER rating for significant energy savings.
- Extreme Durability: Gold Fin® condenser resists corrosion, thus perfect for coastal climates.
- Reliable Heating: This multi-zone mini split AC and heat pump provides heat down to -13°F.
- DIY Installation: Patented Pre-Charged Quick Connect Line Sets simplify installation with no professional technician required.
- Limited Lifetime Compressor Warranty: Unmatched peace of mind.
- Line sizes 1/4”, 1/2”

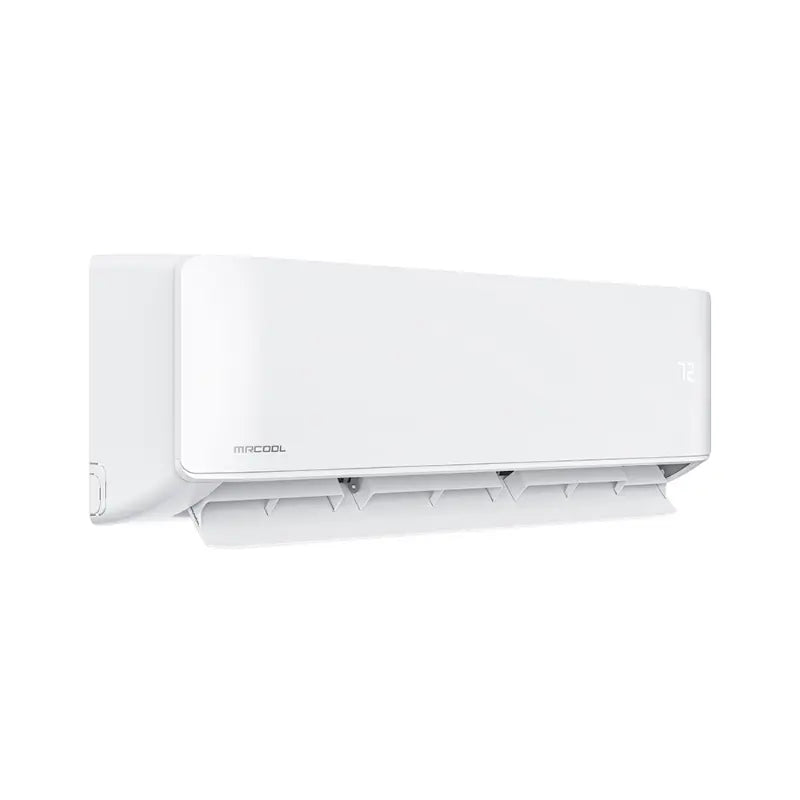

Efficient 9K and 12K BTU Wall Mounted Air Handler
- Smart Home Ready: Control your system remotely with the SmartHVAC app, compatible with Amazon Alexa and Google Assistant.
- Versatile Operation: Cool, heat, dehumidify, and customize settings with multiple operating modes.
- Effortless Installation: Easy to install on most interior walls with the included mounting plate and Quick Connect Line Sets.
- Exceptional Efficiency: Achieve up to 22 SEER for maximum energy savings.
Overall, this 4th Generation MrCool 48K BTU 21 SEER DIY 4 Zone Ductless Mini-Split System innovative system boasts exceptional efficiency and performance, making it a top choice for homeowners. Hence, enjoy the convenience of DIY installation and explore available financing options.
-
Heat Pump Condenser Model Number DIY-MULTI5-48HP230C SEER/SEER2 20.5 EER/EER2 11 HSPF-4 / HSPF-5 11 / 8.5 CFM 4500 Cooling Capacity 48000 BTU Heating Capacity 48000 BTU Voltage 208-230 V Phase 1 Cycle 60 Max Fuse Breaker 60A Min Circuit Ampacity 40A Zone Capacity Up to 5 Refrigerant Type R-410A Refrigerant Volume 162 oz Decibel Rating 61.5 DBA Inverter Yes Min Ambient Cool 5 ~ 122 F Min Ambient Heat 5 ~ 75.2 F Max Lineset Length 221 ft Total Liquid Line Size 1/4 Suction Line Size 1/2 Compressor Motor Type Rotary Condenser Fan Motor RPM 900/850/800/750 WIFI and App Compatibility Yes Works with IOS and Android Yes Height x Width x Depth 52.48 x 37.48 x 16.34 in Net Weight 222.89 lbs Air Handler Model Number DIY-09-HP-WMAH-230C25 Cooling Capacity 9000 BTU Heating Capacity 9000 BTU Height x Width x Depth 11.69 x 31.57 x 7.44 in Weight 23.81 lbs Air Handler Model Number DIY-12-HP-WMAH-230C25 Cooling Capacity 12000 BTU Heating Capacity 12000 BTU Height x Width x Depth 11.69 x 31.57 x 7.44 in Weight 23.81 lbs Registered Warranty Limited Lifetime Compressor Base Warranty 5-year Parts/7-year Compressor -
-
