MrCool

SKU: Model: DIY-36-HP-WM-230C25

DIY 4th Generation E Star 36k BTU Ductless Mini-Split Heat Pump Complete System - 208-230V/60Hz

DIY 4th Generation E Star 36k BTU Ductless Mini-Split Heat Pump Complete System - 208-230V/60Hz

Regular price $2,888.00
Regular price $3,099.00 Sale price $2,888.00
Sale Sold out
View full details
  •  Experience unmatched power and efficiency with the MRCOOLB. 4th Generation DIY 36K BTU, 18 SEER Ductless Heat Pump, a remarkable single-zone system in the DIY Series. This complete system is designed to cover an impressive area of up to 1500 sq. ft while delivering an outstanding 18 SEER efficiency rating. The best part? Homeowners can easily install this high-performance system with just a few hand tools, thanks to the patented MrCool Pre-Charged Quick-Connect Line Set, making refrigerant piping connections as simple as turning a wrench.

    Beyond its performance and easy installation, the MRCOOL DIY system offers a plethora of operational functions and features that set it apart. Select from six operation modes: AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification), and SLEEP, to tailor your comfort experience. The Follow Me function constantly adjusts the room temperature based on readings from the handheld remote controller.

    But it doesn't stop there; you can operate the system with your Apple or Android smartphone using the Smart HVAC app, taking home comfort management to the next level. To top it all off, MrCool provides the peace of mind of a limited lifetime compressor warranty for this system.

    FEATURES:

    • Up to 18.3 SEER
    • Gold FinB. condenser: corrosion-resistant for coastal living
    • Variable-speed DC inverter compressor technology for cost-effective operation
    • Environmentally friendly R-410A refrigerant
    • Quieter operation with Decibel Rating: 52/45/34 (Low: 34 dBA, High: 52 dBA)
    • Inverter technology for enhanced energy efficiency
    • Wi-Fi compatibility and smartphone app control

    CERTIFICATIONS:

    • AHRI certified
    • UL listed

    WARRANTY:

    • Limited Lifetime Compressor
    • 5-year Parts/7-year Compressor (Base warranty)
    • Proposition 65 warning: Contains chemicals, aerosol, and compressed gas

    Discover unmatched power and comfort with the MRCOOLB. 4th Generation DIY 36K BTU, 18 SEER Ductless Heat Pump Systemb 0offering outstanding performance and efficiency with the ease of installation for homeowners.

  • Model: DIY-36-HP-WM-230C25
    SEER: 18
    EER: 8.7
    COP: 2.81
    HSPF: hspf4/hspf5: 12/9
    CFM: 673.53/502.94/367.65
    Tonnage: 3
    Cooling Capacity: 36000 BTU
    Heating Capacity: 36000 BTU
    Voltage: 208-230 V
    Phase: 1
    Cycle: 60 Hz
    Max Fuse Breaker: 35 A
    Min Circuit Ampacity: 28 A
    Line Set Length: 25 ft
    Max Line Set Length: 75 ft
    Liquid Line Size: 3/8 in
    Suction Line Size: 5/8 in
    Compressor Motor Type: Rotary
    Condenser Fan Motor RPM: 950/250
    Blower Motor RPM: 1200/950/750
    Condenser: Dimensions & Weight:
    Depth: 16.14 in
    Height: 31.89 in
    Width: 37.24 in
    Weight: 147.27 lbs

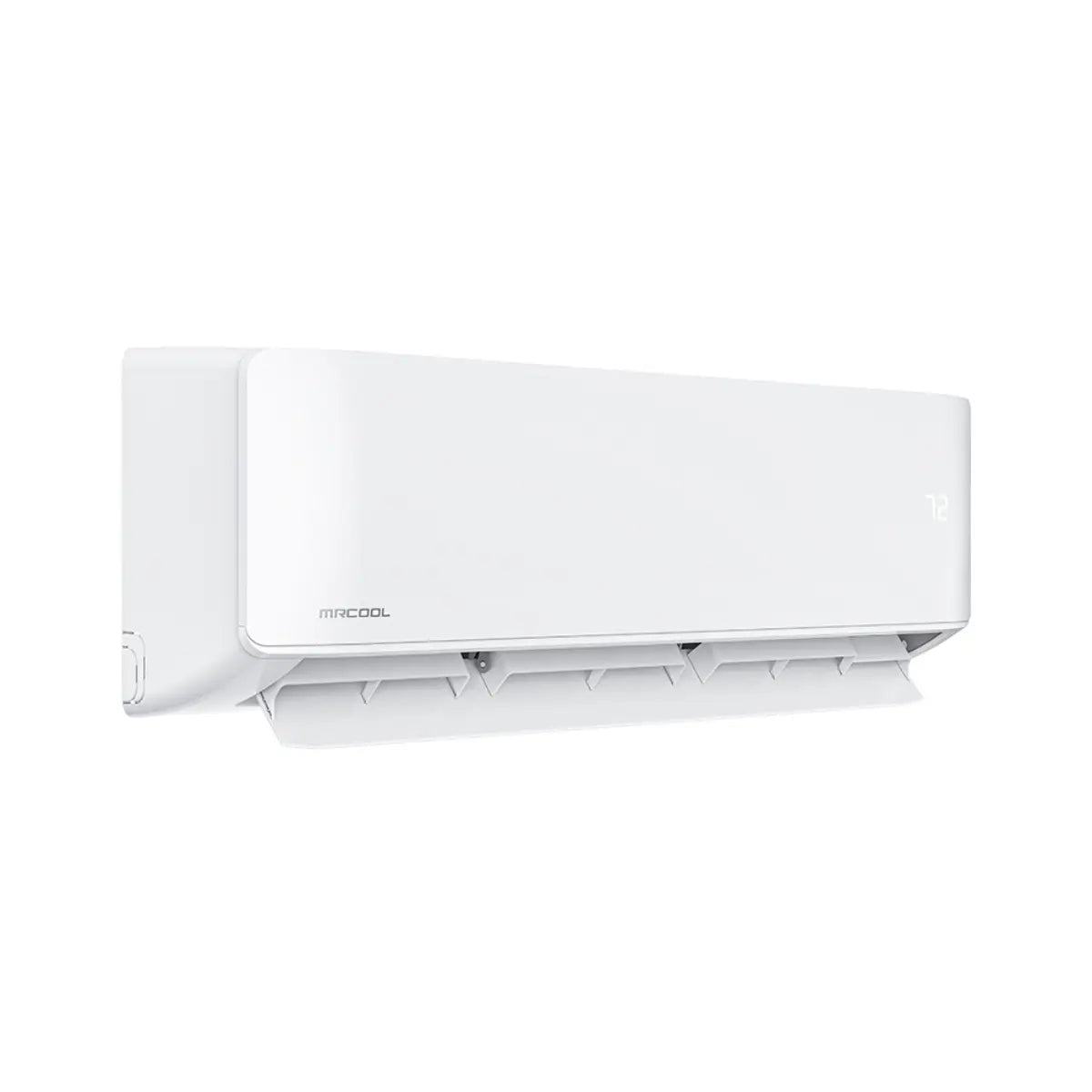

    Air Handler: Dimensions & Weight:
    Depth: 11.10 in
    Height: 14.25 in
    Width: 49.57 in
    Weight: 47.84 lbs
