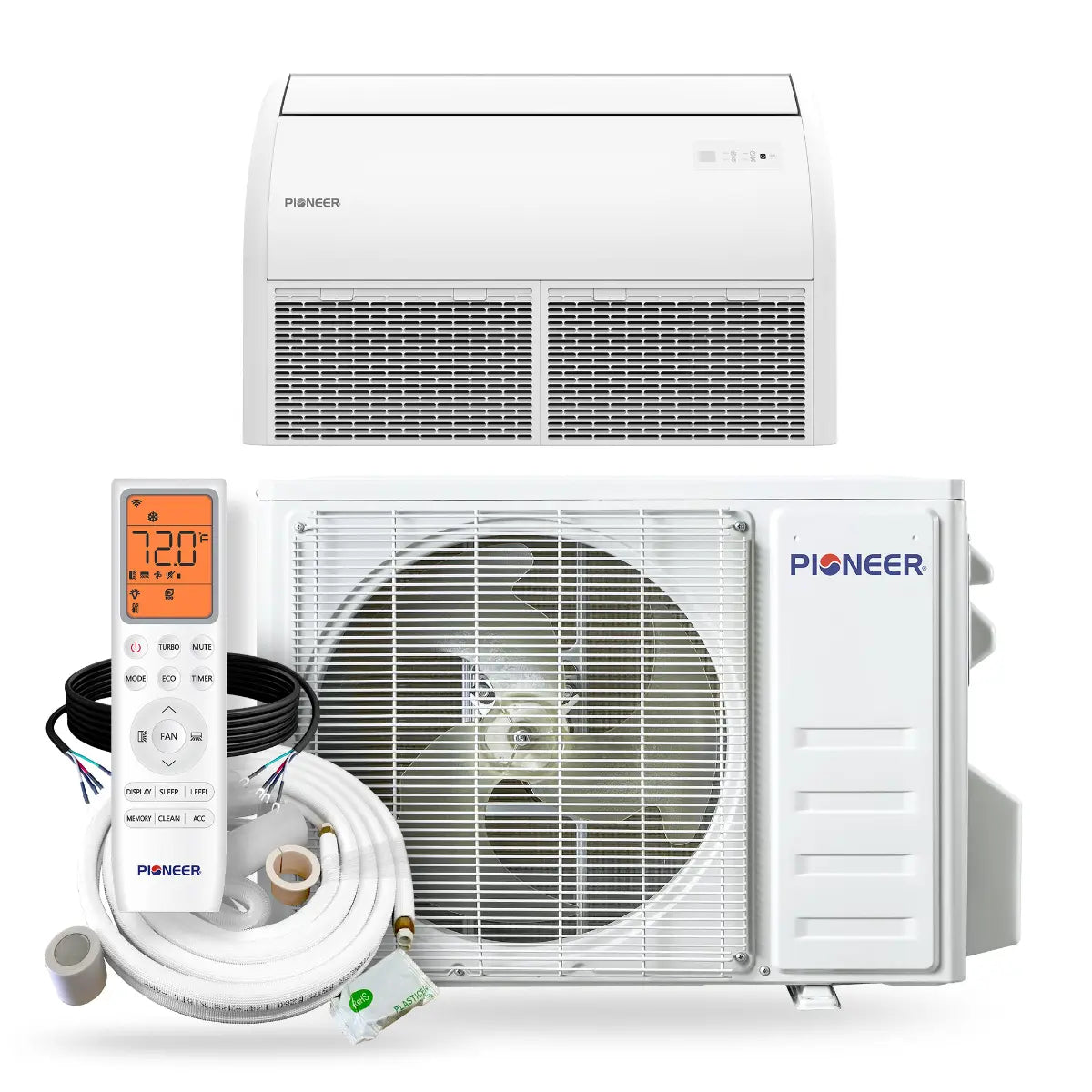

Pioneer Quantum Ultra 18,000 BTU 20.5 SEER2 230V Floor/Ceiling/Low-Wall Ductless Mini-Split AC Inverter Heat Pump Full Set - R454B

Quantum Ultra™ Ceiling Cassette

• High Efficiency Quantum Ultra Floor/Ceiling/Low-Wall Ductless Split Heat Pump System
• Cooling capacity: 18,000 BTU/H with 20.5 SEER2 / 11.7 EER2 efficiency
• Heating capacity: 18,000 BTU/H with 9.0 HSPF2 / 2.8 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• Floor/Ceiling/Low-Wall Mounted Ductless Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers
• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • IFEEL, to Detect and Adjust to Local Temperature

Control your new Pioneer CYT cassette system by the remote, or remotely, via your iOS or Android smartphone. Set schedules, turn the system on or off, and monitor current indoor and outdoor temperatures from across the world, all conveniently from the free Pioneer Airlink app.

Uniform Cooling Experience All Throughout the Room: 8-Way 360° Airflow

Enjoy omni-directional air output that ensures the conditioned air proportionally reaches all 4 corners of the installed area, thanks to an innovative design featuring 4 sides and 4 corners of airflow.

Eliminate Stale Air and Feel the Freshness: Fresh Air Intake

The Pioneer CYT series cassette offers a provision of fresh-air intake via an optional reserved port. New outdoor air can be easily brought inside to replace stale room air.

Adaptive Directional Distribution Based on Operation Mode: Intelligent Air Throw

With the wide operating angle of the airflow louver, the Pioneer CYT series cassette is able to drape the room with a satisfying breeze in cooling mode, and wrap the area with cozy warmth in heating mode.

Keep Your Room Air Healthy and Dust-Free: Easy-Clean Air Filter

Not only are the air filters washable and re-usable, they are super easy to access. Simply detach the center grille and slide out the filter when it's time to wash. Re-insert the same way when done, so that your cassette can continue removing pollen, dust, and other allergens from the air in the room.

Versatile and Easy Disposal of Condensate Water: Built-In Drain Pump

Every cassette includes a condensate pump that is capable of vertically lifting drainage water up to 30 inches, which can be disabled if desiring to drain via gravity instead. And if the drain pan stays full due to a clog, the system will shut itself off to prevent overflow and flash an alert code.

Methods of Control

Pioneer Mini Splits offer a multitude of options when it comes to commanding your system.

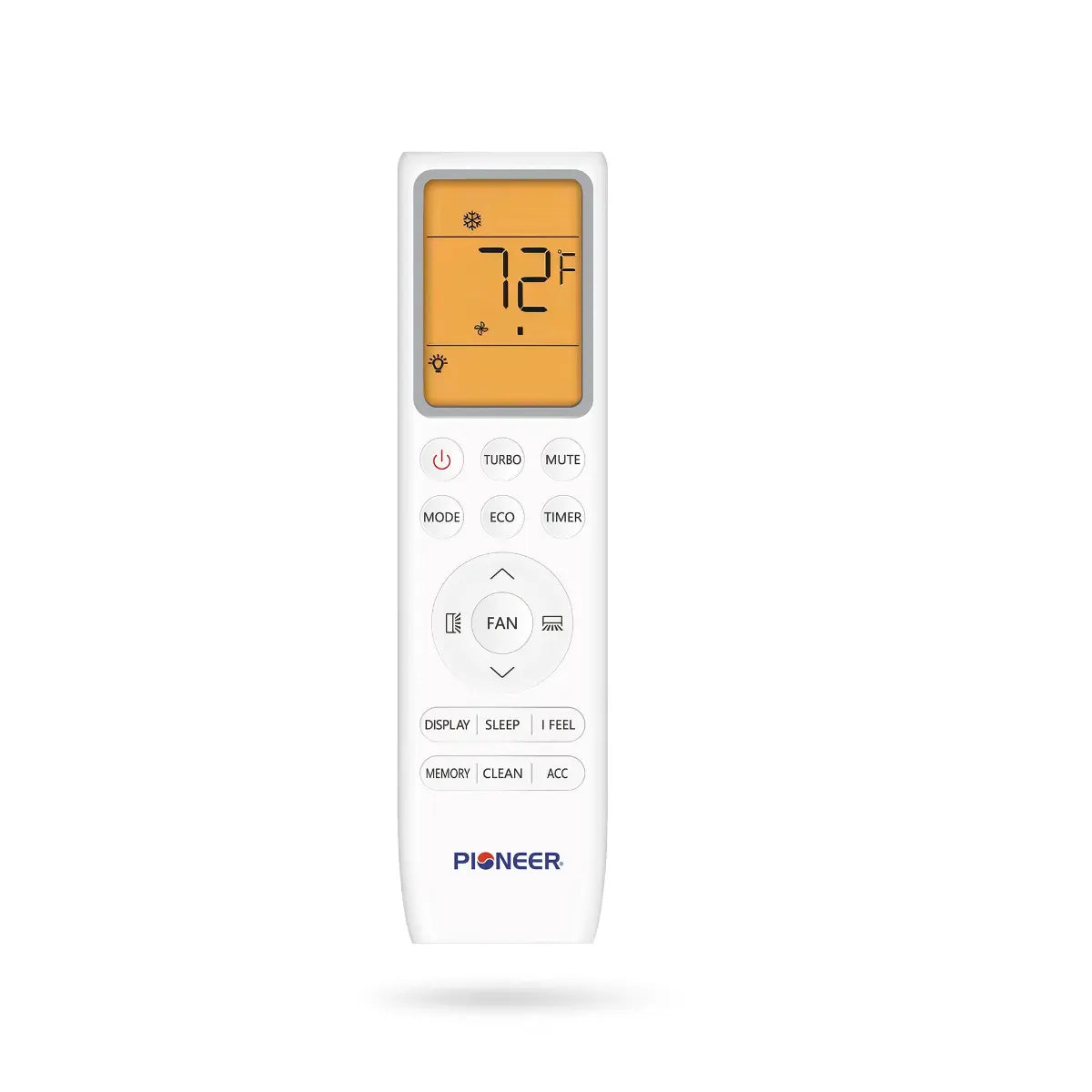

Handheld Remote: The easy to use RC310TG remote offers quick and simple access to all of the important functions of your system (included with purchase).

Phone App: No remote, no problem. Use the tech that's already with you at all times by downloading the free Pioneer Airlink app (available out of the box).

Voice Control: Once configured, Pioneer Airlink offers integrations to various 3rd party voice control platforms like Google Assistant, Amazon Alexa, and Apple Siri.

Wired Controller: The CYT cassette is compatible with the latest wired wall-mountable controller TST-WPT-540L, for weekly programming (available sold separately).

What's Included in Your Purchase

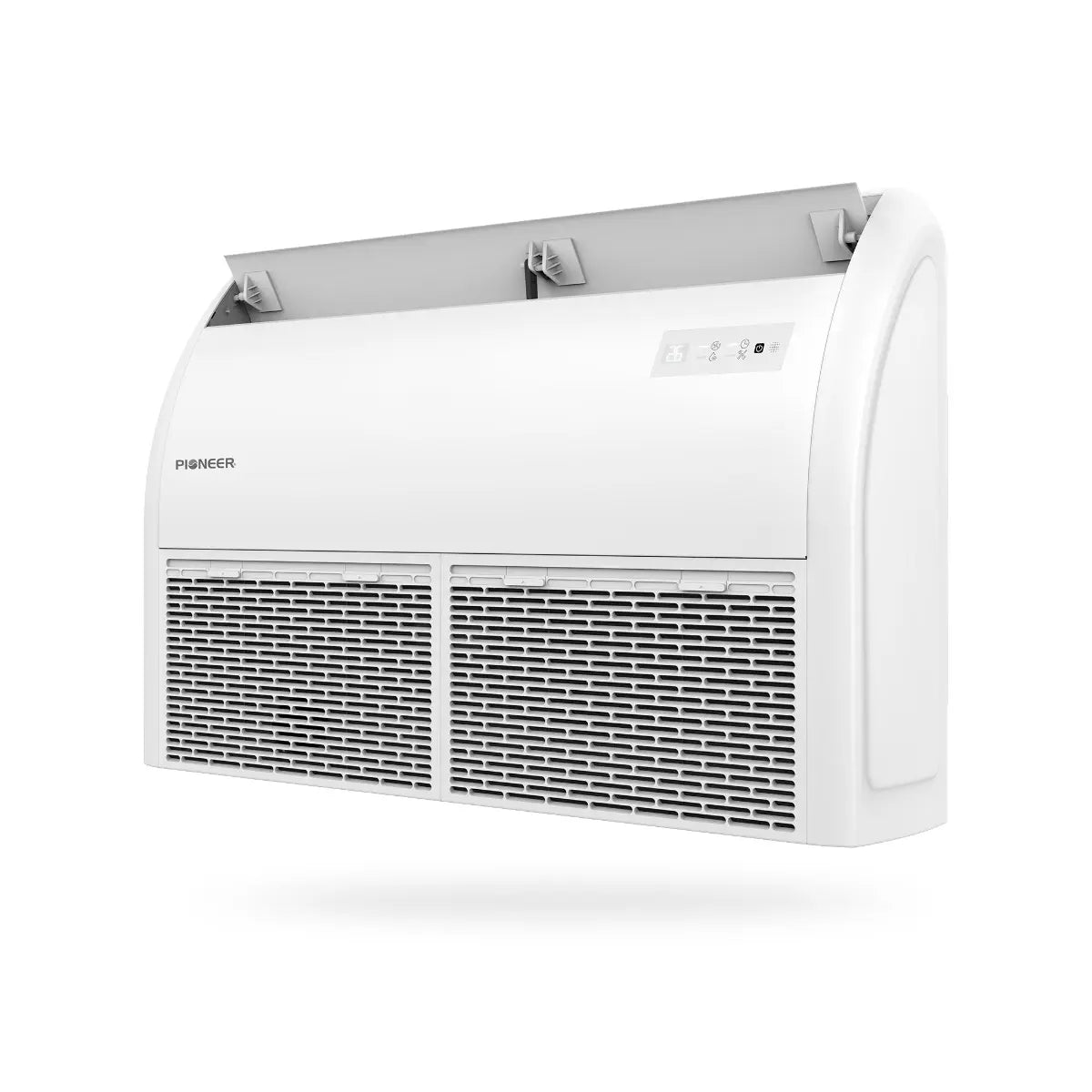

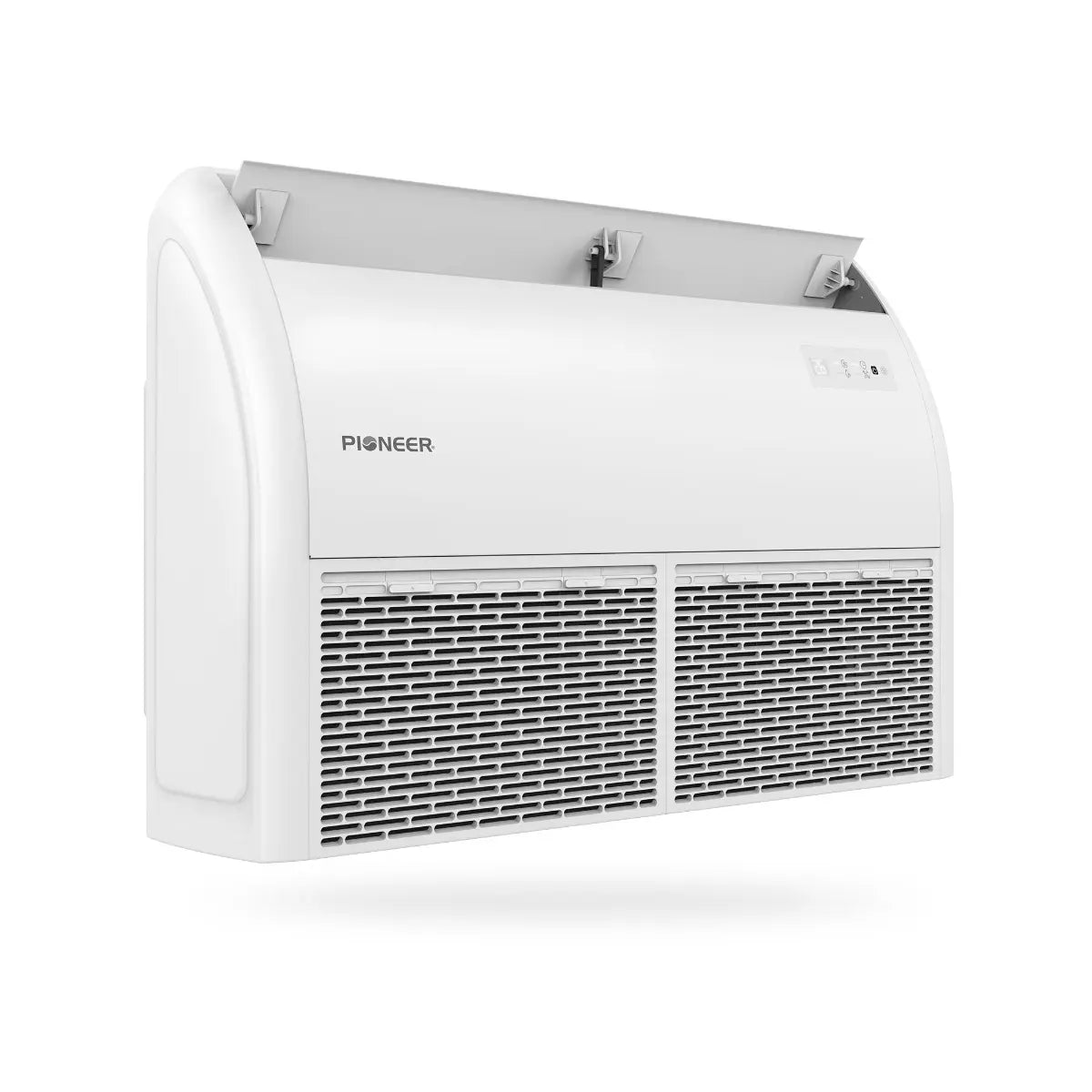

• Indoor Unit

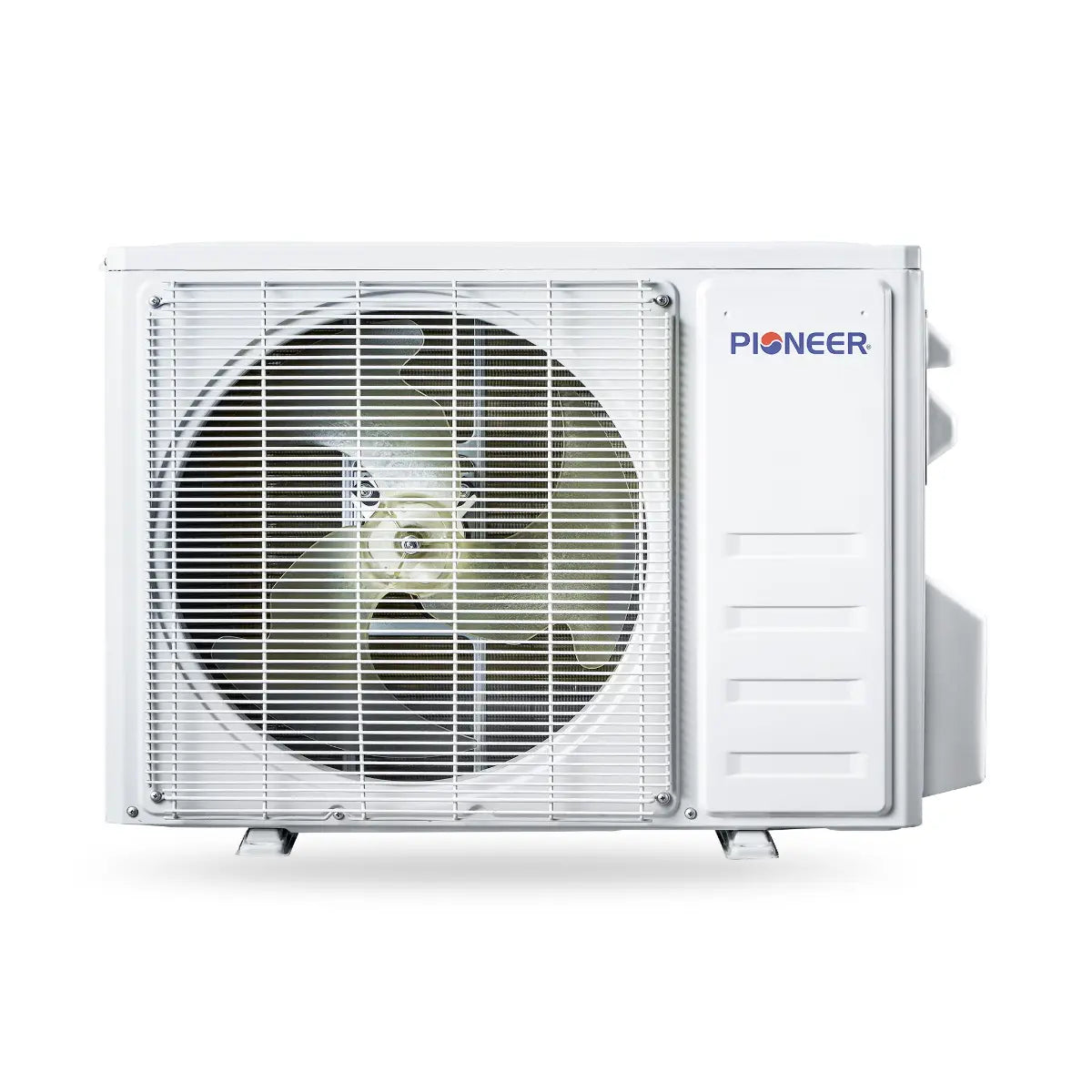

• Outdoor Unit
• Indoor Panel
• Wireless Remote Control
• Remote Control Wall Holder
• Remote Control Batteries

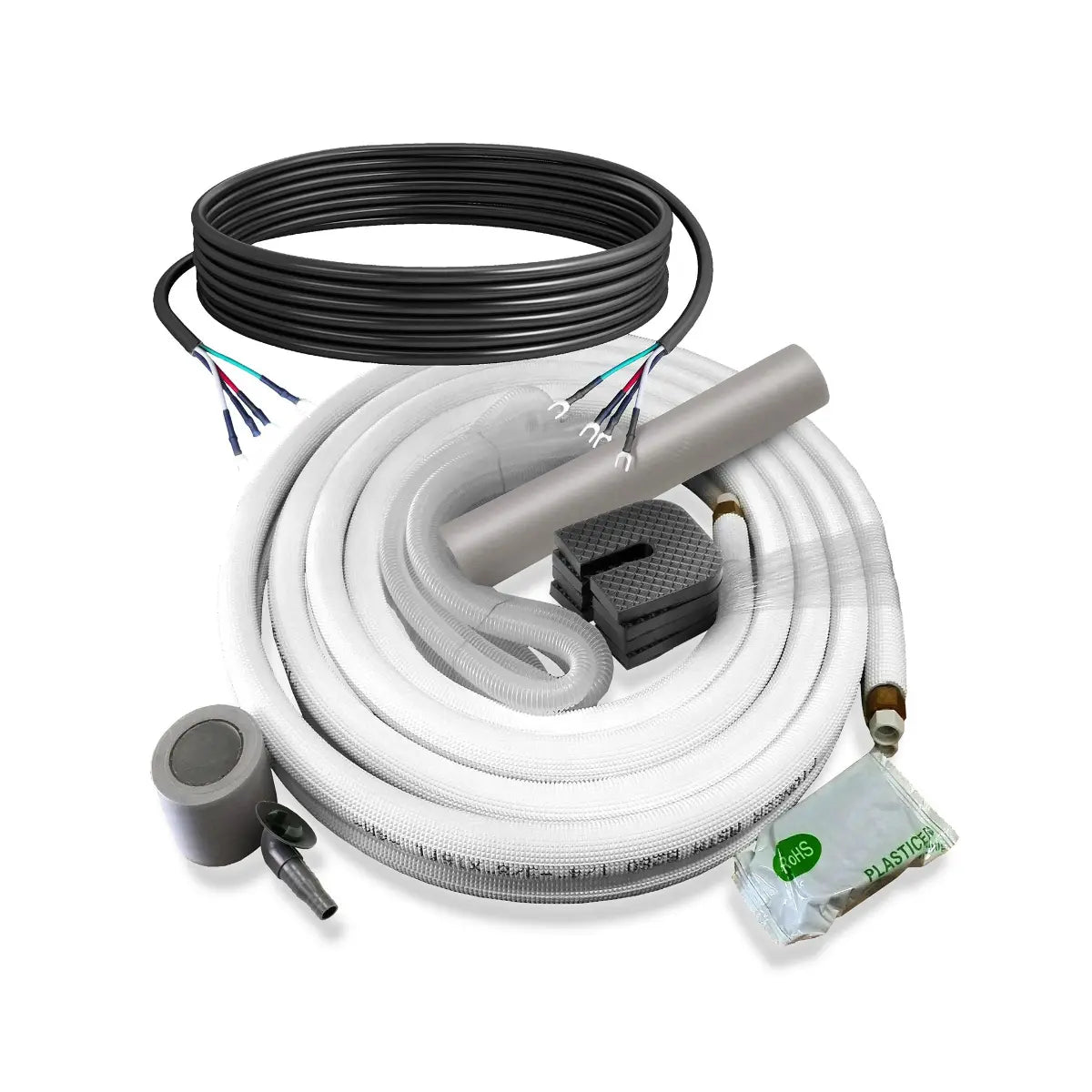

• Customizable Length Copper Lines
• Customizable Length Electrical Wire
• 10 Ft. Drain for indoor/outdoor
• Wall Passage Sleeve
• Putty for Wall Hole
• Leak Guard Sealer
• Wrapping Tape
• Installation Manual
• User’s Manual

Product Warranty

Warranty Registration is required within 90 days of purchase.

• Up to 5 years Warranty for Parts
• Up to 5 years Warranty for Compressor
